Sand Washing Plant

Sand Washing Plant

Sand washing machine is an important equipment for artificial sand and natural sand washing operation. It can wash away the trace stone powder and impurities in sand and gravel to improve the quality of sand.

Sand washing machine is widely used in sand and gravel quarries, mining, building materials, transportation, chemical industry, water conservancy and hydropower, concrete mixing station and other industries for washing, grading and de-watering of materials. Vatsal adopts advanced technology and combines the actual needs of sand and gravel industry to develop sand washing machine.

  • Models
  • Benefits
  • Gallery
Technical Data

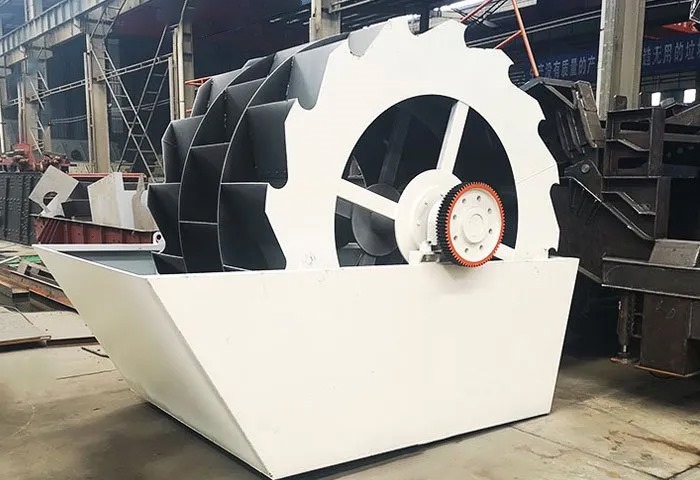

Spiral sand washer Wheel bucket sand washer
Model Feeding size (mm) Capacity (t/h) Diameter of spiral (mm) Model Feeding size (mm) Capacity (t/h) Impeller size (mm)
VESW-950 <10 30-60 950 VEWBW-1800 <10 20-40 1800*800
VESW-1150 <10 40-80 1150 VEWBW-2600 <10 20-50 2600*1200
VESW-1500 <10 50-100 1500 VEWBW-3000 <10 50-120 3000*1600
  • Efficiency
  • Cost-Effective
  • Improved Quality
