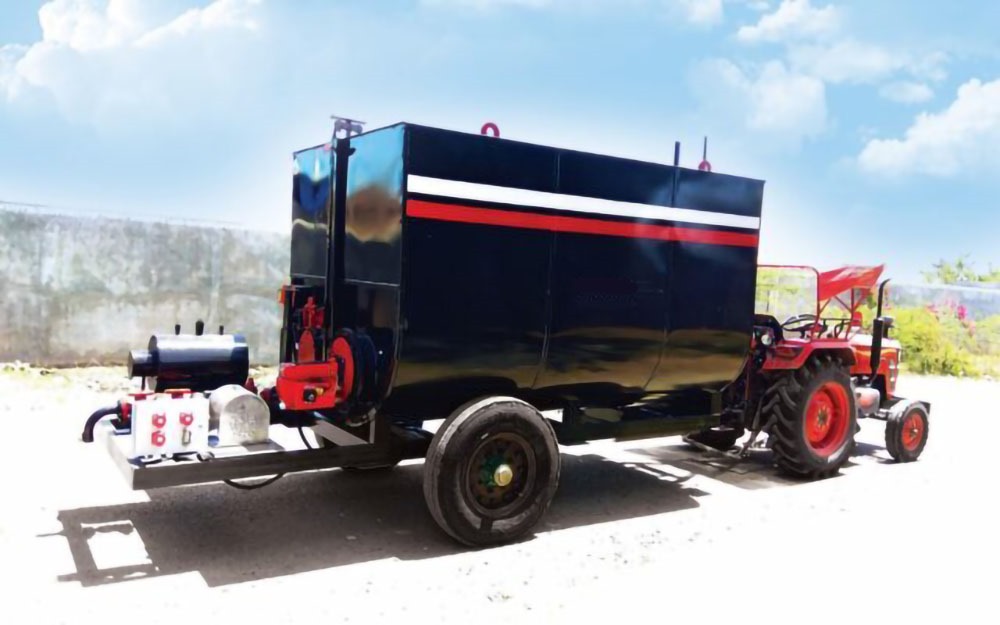

Tractor Mounted Bitumen Sprayer
Tractor linked tyre mounted bitumen-emulsion sprayer is developed for tack / prime coat by hand Spraying arrangement and intermittent spraying application with road dust cleaning also. This Equipment is capable of applying uniform coating of hot bitumen & emulsion on specified surface.
| Model | VETB – 3000 |
|---|---|
| Capacity | 3000 Ltr |
- Overview
- Features
- Benefits
- Gallery
This Equipment is capable of applying uniform coating of Hot Bitumen & Emulsion on
Specified Surface.
- Capacity: 3000 Ltr.
- Engine: 8HP Air cooled, diesel engine, MAKE: KIRLOSKER OR TOPLAND
- Air Blower: Twin Lobe with cleaning SS Pipe 5Mtr.
- L.A.P. Burner: size 00 With wood fire Bhatti
- Bitumen Spray System: Hand Lance pipe with Nozzle & Rubber Hose 5 Mtr.
- Temperature Gauge: 12” X 3” dia SS Body
- Drum Loading System: Chain pulley block Capacity 1 Ton
- Rubber Tyre: 1000 X 20 (Rear Axel) Radial 2 Nos.
- Tank Insulation: By Rock wool Blanket (Not use Loose Insulin)
- Body: made by 4 mm Plate with both side full welding (Tank Out Side & Inside)
- Continuous operation Four bins have individual geared motor with VFD speed control.
- High Production Capacity
- Easy to Maintain
- Energy-efficient
- Versatile
- Cost-effective
- Consistent Quality
- Reduced emissions Primary Multi-Cyclone Dust Collection unit is capable to collect dust from the drum unit.
- Automated Plant HMI & PLC with Scada with accurate weighing & assuring quality of wide range of product.
- Reduced Downtime
